what's the difference between support plate and hump support?

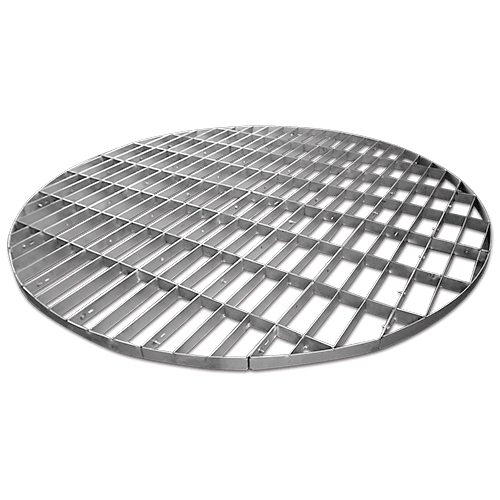

Support Plate:

1. Design:

   • Flat or slightly curved plates with openings (holes, slots, or grids) to allow the passage of gas and liquid.
   • Typically made from metal, plastic, or composite materials.

2. Function:

   • Primary Role: To provide a stable base for the packing material and distribute the weight evenly.
   • Flow Distribution: Ensures uniform distribution of gas and liquid across the packing bed.
   • Drainage: Allows liquid to drain effectively while preventing excessive hold-up or flooding.

3. Applications:

   • Used in both random and structured packing systems.
   • Suitable for a wide range of industries, including chemical, petrochemical, and environmental.

4. Advantages:

   • Simple and robust design.
   • Provides excellent support and drainage capabilities.

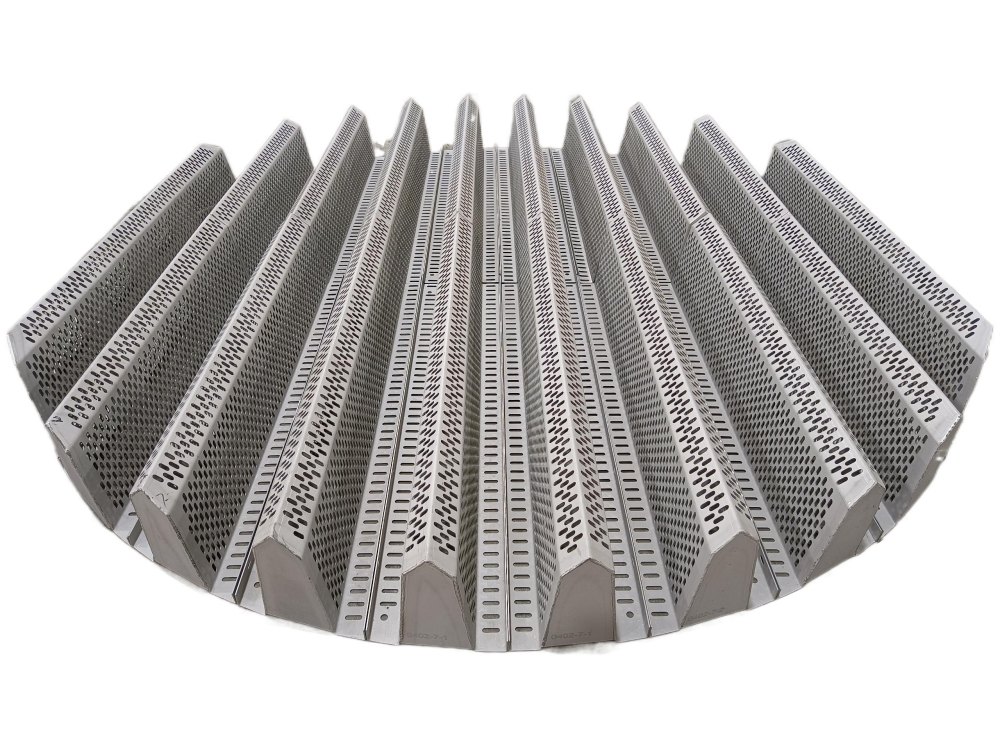

Hump Support:

1. Design:

   • Curved or arched plates with a "hump" shape, often with openings for gas and liquid flow.
   • Made from materials such as metal or plastic.

2. Function:

   • Primary Role: To support the packing material while minimizing pressure drop and improving liquid distribution.
   • Enhanced Drainage: The hump shape facilitates better liquid drainage and reduces the risk of liquid pooling.
   • Gas Flow Optimization: The design allows for smoother gas flow, reducing resistance and energy consumption.

3. Applications:

   • Commonly used in columns with high liquid flow rates or where minimizing pressure drop is critical.
   • Ideal for applications involving random packing.

4. Advantages:

   • Improved liquid and gas distribution compared to flat support plates.
   • Lower pressure drop, leading to energy savings.
   • Reduces the risk of flooding and channeling.

Key Differences:

1. Design:

   • Support plates are typically flat or slightly curved, while hump supports have a distinct arched or hump-like shape.

2. Pressure Drop:

   • Hump supports are designed to minimize pressure drop more effectively than flat support plates.

3. Liquid Drainage:

   • Hump supports offer better liquid drainage due to their arched design, reducing the risk of liquid hold-up.

4. Application Specificity:

   • Support plates are more versatile and widely used, while hump supports are often chosen for specific applications requiring optimized flow and drainage.

Comparison Summary:
